MODEL	CTM9LR-250		CTM9LR-400		CTM9LR-630
Frame grade rated current Inm(A)	125/250		400/630		630/800
Pole	3P+N/4P		3P+N/4P		3P+N/4P
Rated current (adjustable) In(A)	(0.4~1.0)In		(0.4~1.0)In		(0.4~1.0)In
Rated insulation voltage Ui(V)	1000		1000		1000
Rated working voltage Ue(V)	AC380/400/415
Rated impulse withstand voltage Uimp(kV)	12		12		12
Rated limit short-circuit breaking capacity class	M	H	M	H	M	H
Rated limit short-circuit breaking capacity Icu(kA) (AC400V)	36	50	65	85	65	85
Rated running short-circuit breaking capacity Ics(kA) (AC400V)	25	36	50	70	50	70
Rated short time withstand current Icw(kA)/1s	10		15		15
Rated residual operated current I△n(mA)	30/50/75/100/200/300/500/OFF step regulation(non time delay type；50/75/100/200/300/500/800/1000/OFF step regulation(time delay type；
Overvoltage operated value	280V±5% default as (OFF), and it can be(ON) 310V±5%(photovoltaic)
Undervoltage operated value	165V + 5% default as (OFF), and it can be(ON)
Flashover distance (mm)	0
Back-up protection	Magnetic trip/ thermal magnetic trip

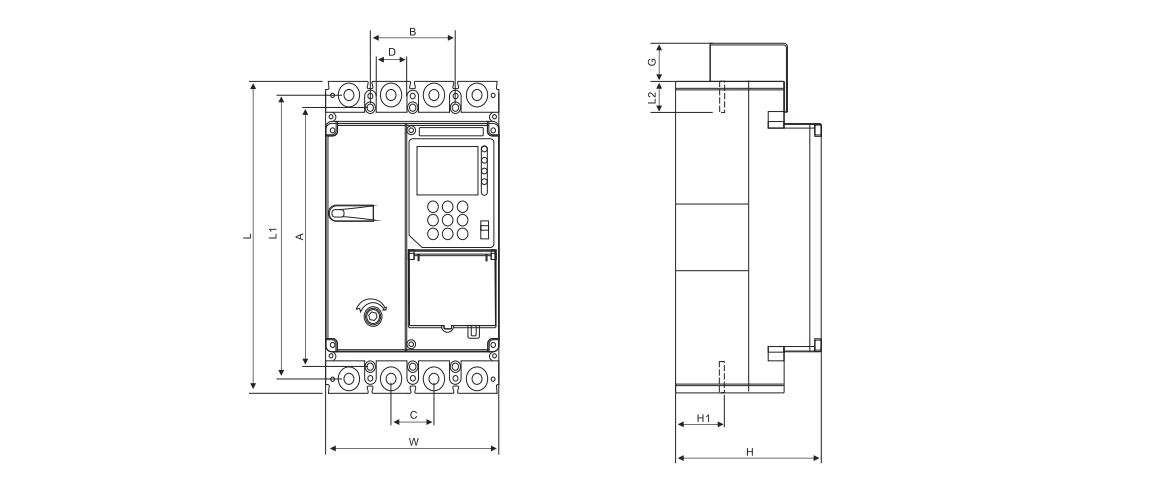

Model	Contour size						Installation size			External copper busbar size	Zero flashover hood	Specification of mounting screw	Wiring screw
Model	L	W	H	L1	H1	L2	A	B	C	D	G
Oujang CTM9L R-250	234	142	120	213	36	22	194	70	35	25	28	M4X85	M8X20
Oujang CTM9L R-400	335	195	175	303	40	33	265	96	48	30	45	M6X65	M10X35
Oujang CTM9L R-630	335	240	176	299	38	37	265	116	58	40	45	M6X65	M12X40
