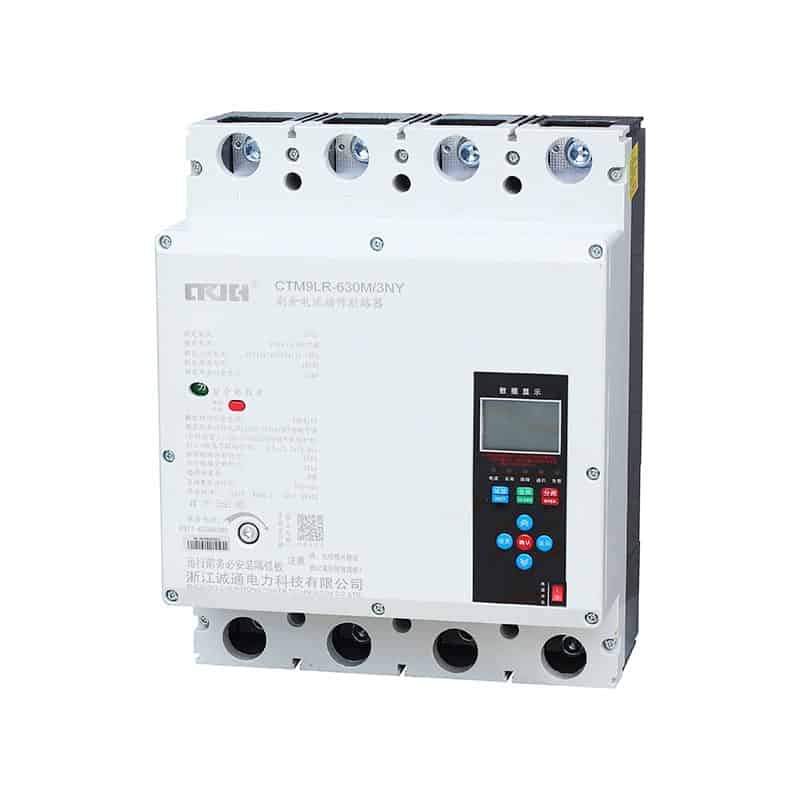

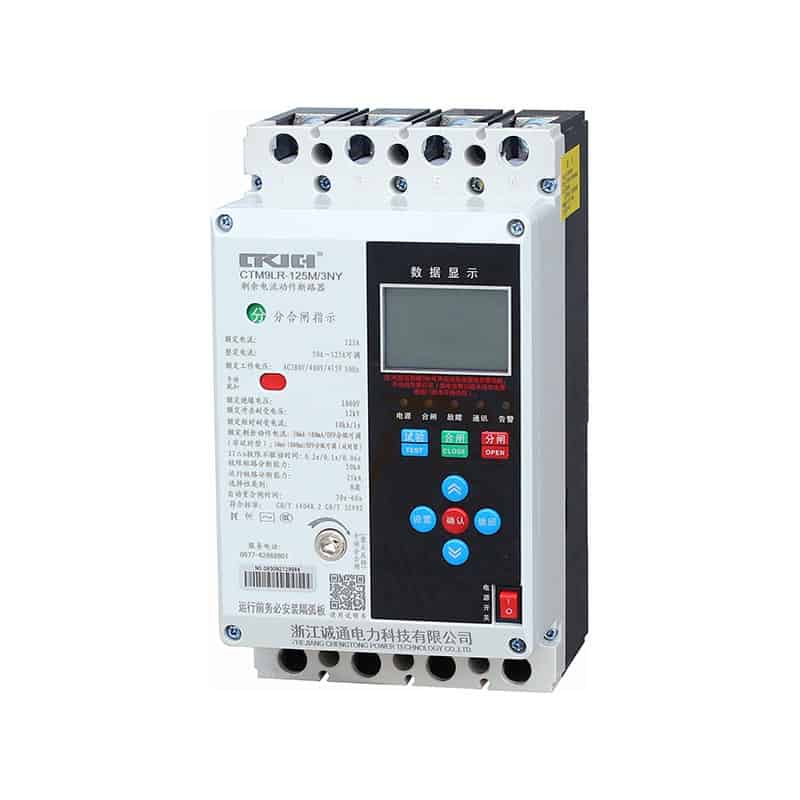

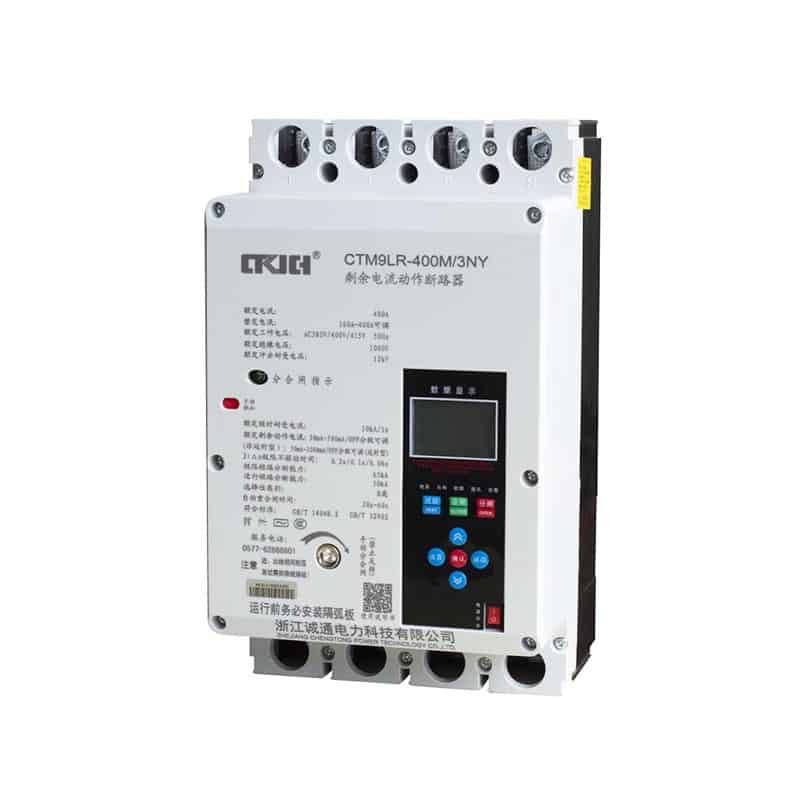

CTM9LR Series Gray Older Model Residual Current Operated Circuit Breaker Automatic Recloser-Zhejiang Chengtong Electric Power Technology Co.,Ltd.

Model	CTM9LR-125		CTM9LR-250		CTM9LR-400/ CTM9LR-630 (Capacity-increased type)			CTM9LR-630 / CTM9LR-800
Frame grade rated current Inm(A)	125/160		250/320		400/630			800/630
Pole	3P+N/4P
Rated current (adjustable) In(A)	(0.4~1.0)In
Rated insulation voltage Ui(V）	1000
Rated impulse withstand voltage Uimp(kV	12
Rated working voltage Ue(V)	AC380/400/415
Rated limit short-circuit breaking capacity class	M	H	M	H	L	M	H	L	M	H
Rated Iimit short-circuit breaking capacity lcu(kA) AC400V	50	85	50	85	50	65	85	50	65	85
Rated nunoing shod-circuit breaking capacity Ics(kA AC400V	35	50	35	50	35	50	65	35	50	65
Rated short time withstand current Icw(kA)/1s	10		10		10			10
Rated residual operated current I△n(mA)	30/50/75/100/200/300/500/OFF step regulation (non time delay type)
	50/75/100/200/300/500/800/1000/OFF step regulation (time delay type)
Overvoltage operated value	280V±5% default as(OFF), and it can be(ON) 310V±5% (photovoltaic)

Undervoltage operated value	165V±5% default as (OFF), and it can be (ON)

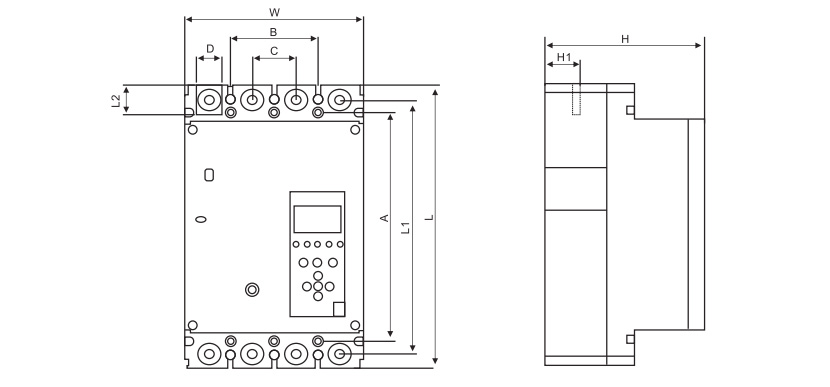

Model	Contour size						Installation size			External copper busbar size	Wiring screw	Specification of mounting screw	Arc barrier in&out terminal length
Model	L	W	H	L1	H1	L2	A	B	C	External copper busbar size	Wiring screw	Specification of mounting screw	Arc barrier in&out terminal length
CTM9LR-125	220	122	134	202	29	15	199	60	30	15	M8X20	M4X45	50
CTM9LR-250	240	142	135	218	23.5	20	201	70	35	20	M8X20	M4X45	65
CTM9LR-400	335	195	177	302	40	30	272	96	48	30	M10X35	M6X65	100
CTM9LR-630 Capacity-increased type	335	195	177	302	41	30	272	96	48	30	M10X35	M6X65	100
CTM9LR-630 / 800	355	280	184	316	42	39	284	140	70	40	M12X35	M6X65	100
