1. Parametric control trip mechanism, can realize the selective breaking of passing current;
2. Low residual voltage of impulse current, which can compare favourably with the fuse;
3. High-energy contact, which has a long service life;
4. Similar appearance to the MCB, small volume, it's convenient to test the SPD when power off;
5. Complete specification, can be matched with T1, T2, and T3 SPD.

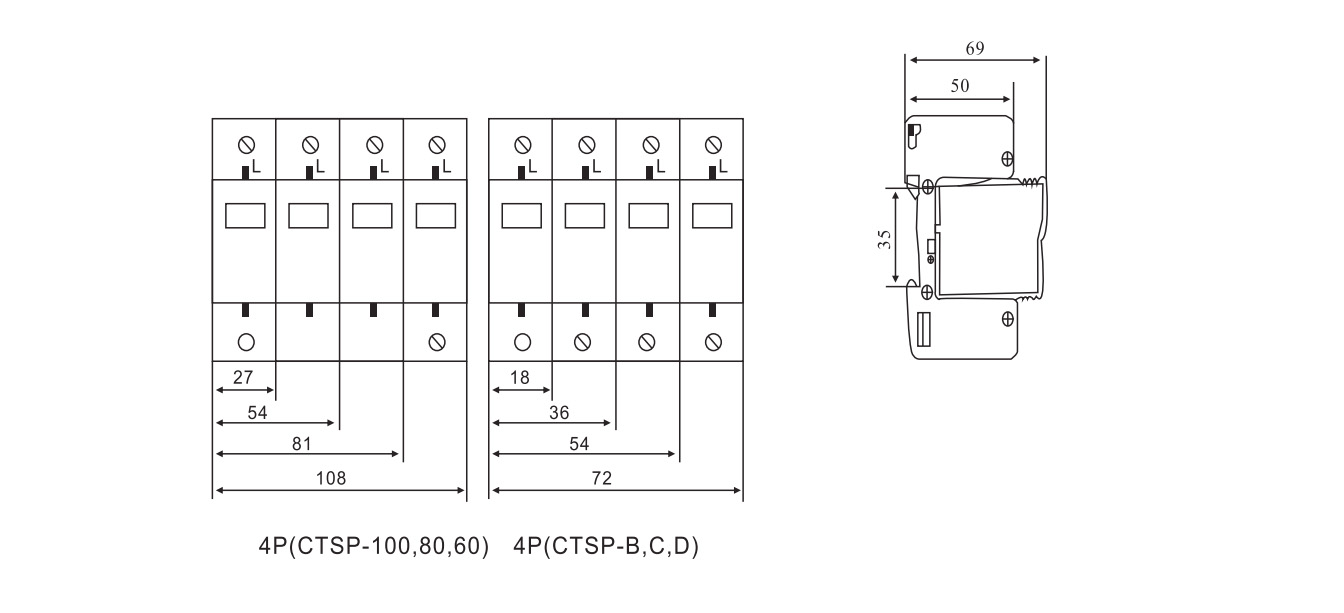

CTSP Series Surge Backup Protective Device
Model: CTSP-40
| Model | Rated working voltage Ue(V) |
Maximum continuous working voltage Uc(V) |
Protection level Up(KV) | Maximum effective current Imax(kA) |
Standard discharge current In(kA) |
Response time (ns) |
Working environment temperature℃ |
||||||||||
| CTSP-100 | AC220/380 | 385 | 3 | 100 | 60 | <25 | <20 | ||||||||||
| CTSP-80 | 2.5 | 80 | 40 | ||||||||||||||
| CTSP-60 | 275,420 140,320 385,550 |
1.5/2.2 | 60 | 30 | |||||||||||||
| CTSP-B | 1.5/2.2 | 80 | 40 | ||||||||||||||
| CTSP-C | 1.5/2.0 | 60 | 30 | ||||||||||||||
| 1.2/1.8 | 40 | 20 | |||||||||||||||
| CTSP-D | 1.2/1.8 | 20 | 10 | ||||||||||||||
| 10 | 5 | ||||||||||||||||
| CTSP-NPE | 275,400 | 1.2 | 40 | 20 | <10 | <100 | |||||||||||
| Pole | Rated working voltage Ue(V) |
Maximum continuous working voltage Uc(V) |
Voltage protection level Up(kV) In:20、10、5KA In:60、40、30kA |
Earthing system | |||||||||||||
| 1P | 220 | 420/275 | 1.8/1.2 | 2.2/1.5 | TN-C、IT | ||||||||||||
| 2P | TT、TN-S、IT | ||||||||||||||||
| 3P | 380 | 420 | 1.8 | 2.2 | TN-C、IT | ||||||||||||
| 4P | TT、TN-S、IT | ||||||||||||||||
| 1P+N | 220 | 420/275 | 1.2 | 1.5 | TT、TN-S、IT | ||||||||||||
| 2P+N | |||||||||||||||||
| 3P+N | 380 | ||||||||||||||||
