Air Circuit Breakers: The Heavy Switchgear That Interrupts the Big Current

An air circuit breaker is the large switch that sits at the main distribution point and interrupts the fault current before it destroys the equipment downstream. It operates in air, with the arc drawn between the contacts and extinguished by a combination of arc chutes, air flow, and the rapid separation of the contacts. Air circuit breakers are not the small molded case breakers in a panel. They are the heavy, draw-out units that handle thousands of amps at low voltage. For industrial plants, data centers, and large commercial buildings, the air circuit breaker is the main protection device.

The Arc and the Interruption

When the contacts open under load, the current tries to keep flowing through the air between them. That is the arc. The arc is hot and ionized, and it has to be extinguished before the current can be interrupted. The air circuit breaker uses an arc chute, a stack of metal plates that splits the arc and cools it. The arc splits into many small arcs, each one cooling faster. The resistance climbs and the current falls to zero.

An air circuit breaker with a properly designed arc chute interrupts the fault current in a few cycles. The breaker does not just open the contacts. It manages the arc.

The Draw-Out Construction

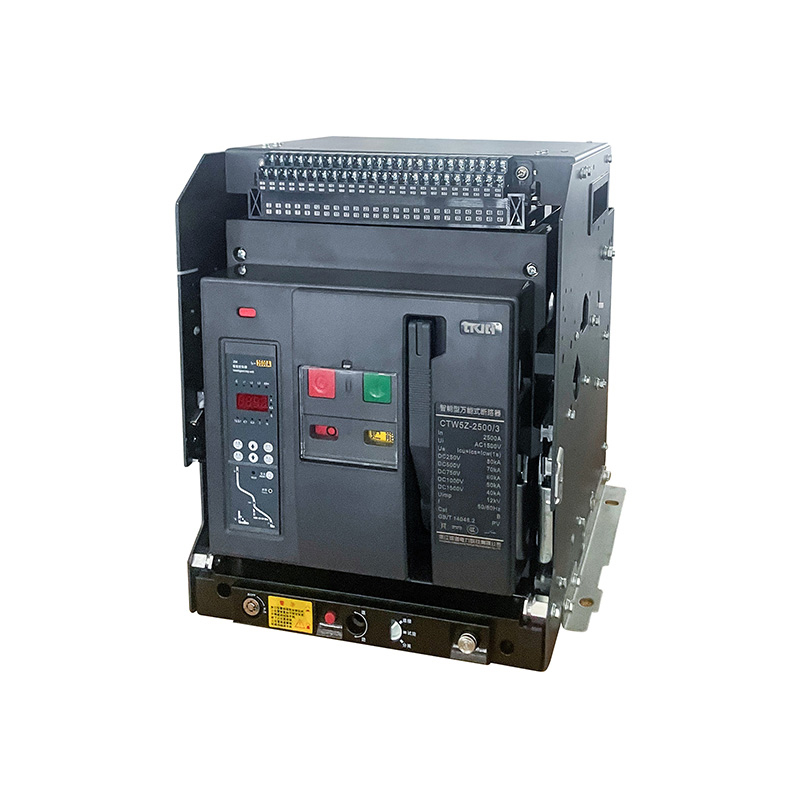

The air circuit breaker sits in a cradle or a cassette. The breaker body is on a draw-out mechanism. The operator racks the breaker in to connect it to the busbars and the cables. The breaker can be racked out to the test position, where the control circuit is still connected but the main contacts are isolated.

The draw-out construction allows the breaker to be removed and replaced without shutting down the entire switchgear. An air circuit breaker with a reliable racking mechanism can be swapped in minutes. A breaker that is fixed in place requires the whole panel to be de-energized for service.

The Protection Functions

The air circuit breaker carries the current and interrupts the fault, but the intelligence is in the trip unit. The trip unit reads the current and decides when to trip. The settings determine the long-time, short-time, and instantaneous protection.

An air circuit breaker with a modern electronic trip unit offers adjustable settings, metering, and communication. The breaker can report the current, the voltage, and the power quality to the control system. The operator sees the load and the events without opening the panel.

Here is what an air circuit breaker needs to deliver:

• Arc chute that splits and cools the arc
• Draw-out mechanism for service without a full shutdown
• Contact material that resists welding under fault current
• Electronic trip unit with adjustable protection settings
• Communication for remote monitoring
• Mechanical and electrical interlocks for safety

Where the Breakers Sit

Industrial plants use the air circuit breaker at the main incoming and the large feeder circuits. The breaker handles the thousands of amps the plant draws.

Data centers use the air circuit breaker in the main switchgear and the UPS distribution. The breaker protects the critical power path.

Large commercial buildings use the air circuit breaker at the service entrance and the distribution panels. The breaker coordinates with the downstream devices.

What Fails on a Cheap Breaker

The contacts weld under the fault current and the breaker does not open. A properly rated contact material resists welding. The arc chute erodes and the interruption slows. A quality arc chute handles the repeated faults. The trip unit drifts and the protection coordinates poorly. A quality trip unit holds its settings.

An air circuit breaker is the heavy switch that protects the main distribution. The arc chute interrupts. The trip unit decides. Choose a breaker with the right arc chute, the right contacts, and the right trip unit. The fault is cleared and the equipment downstream survives.
